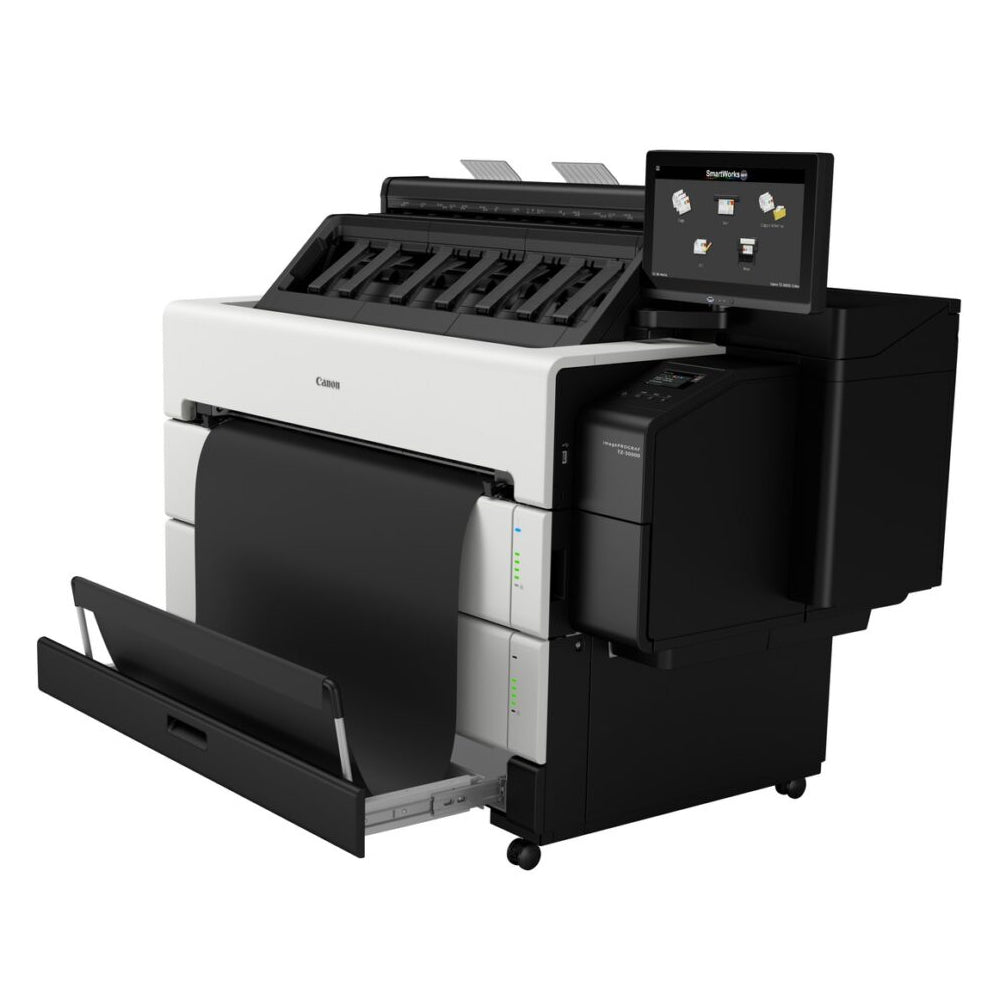

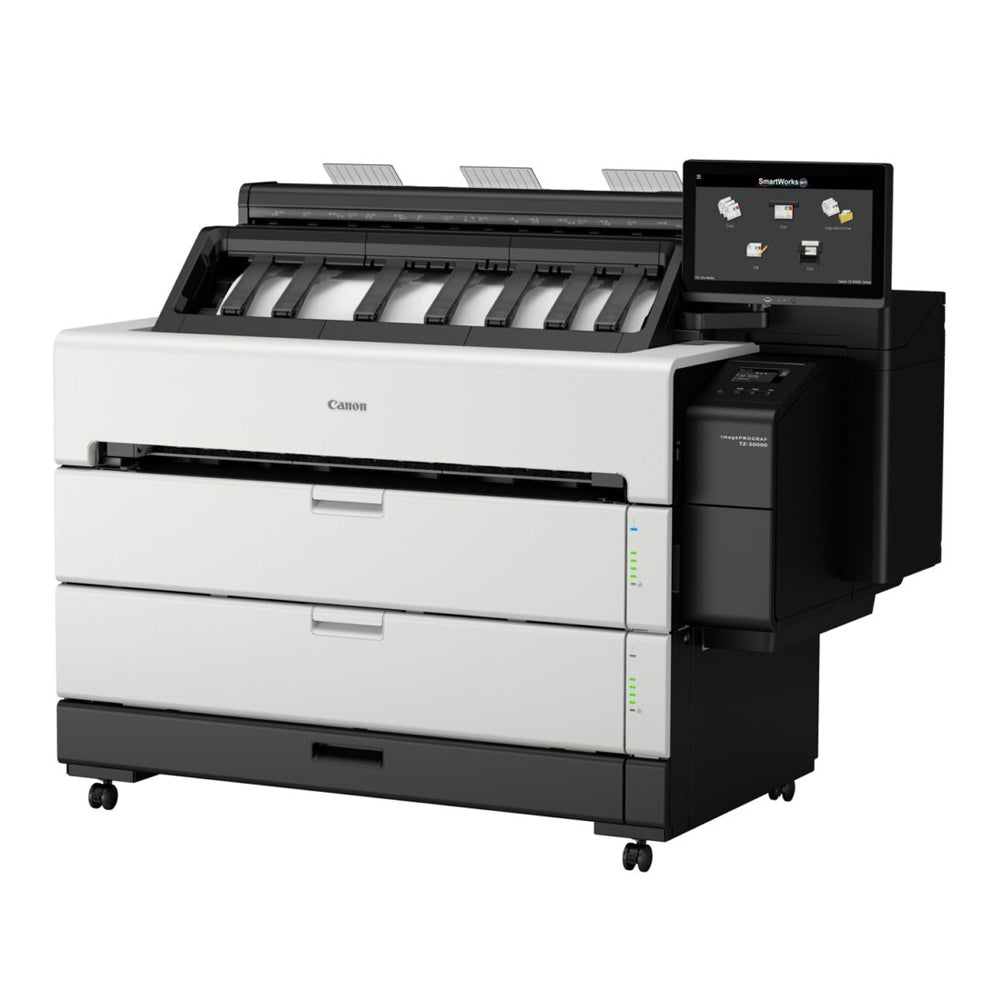

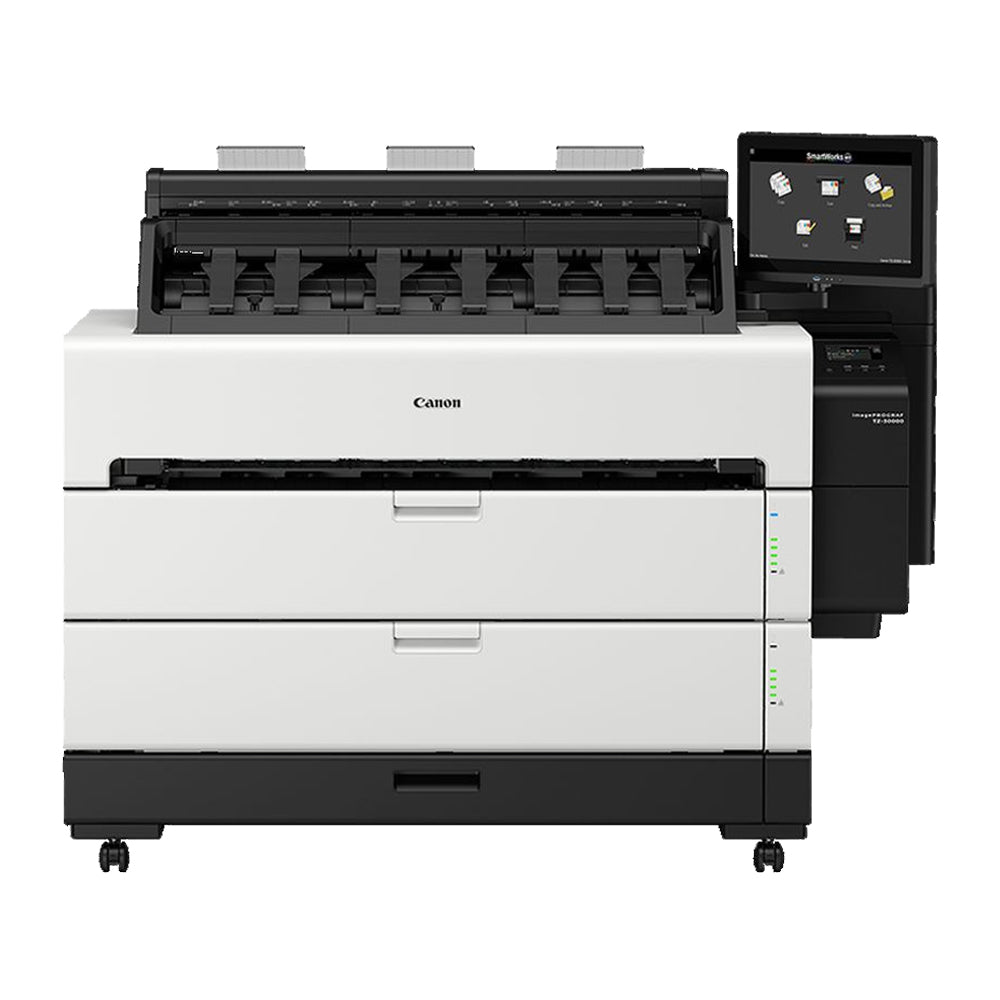

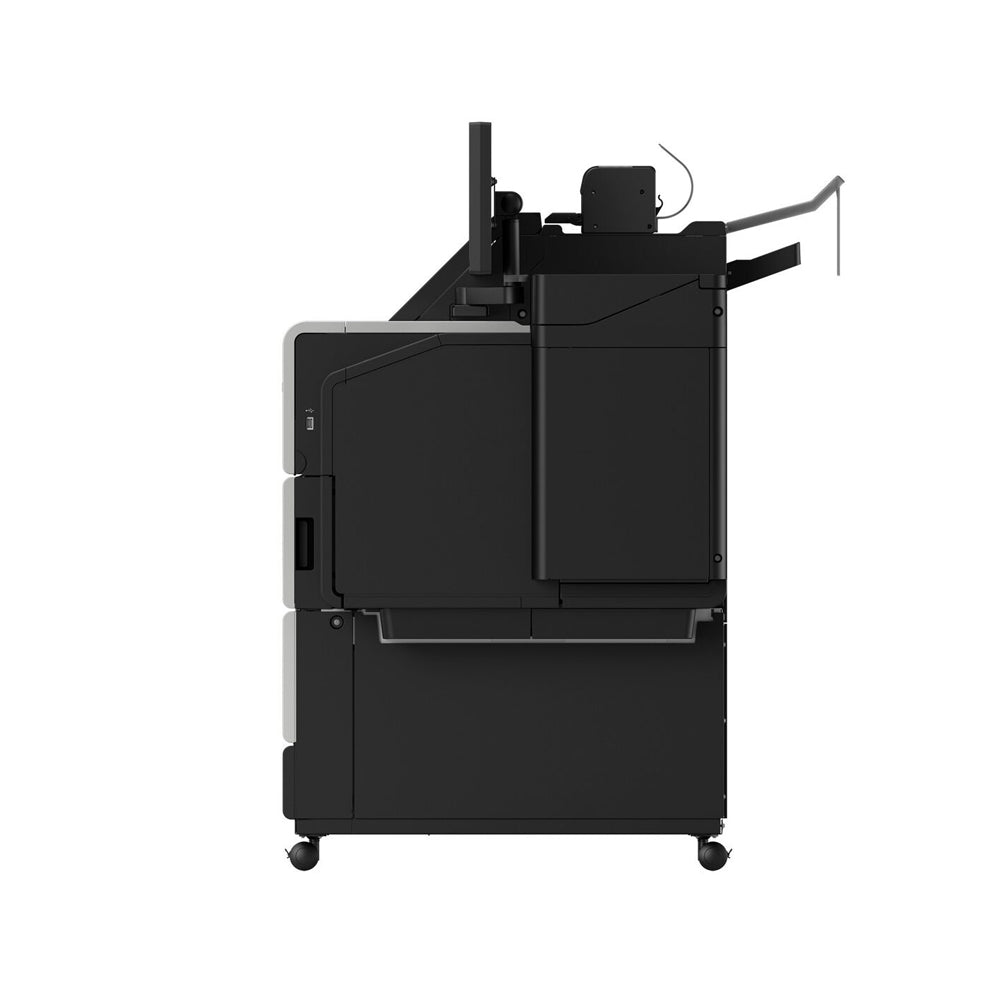

Canon imagePROGRAF TZ-30000 MFP 36-inch Color 2 Roll Wide Format Printer with Z36 Scanner

Introducing the Canon imagePROGRAF TZ-30000 MFP Z36 - the ultimate solution for high-quality, large-format printing and scanning needs. With its cutting-edge features and advanced technology, this 36-inch color wide format printer is designed to exceed expectations in professional environments.

Equipped with a Z36 scanner, the imagePROGRAF TZ-30000 MFP Z36 offers seamless scanning capabilities, allowing you to effortlessly digitize your documents and images with stunning clarity and precision.

Condition New
Configuration Print, Z36 Scanner, 2 Roll Feeders
Print Speed Up to 4 D Prints/Minute
*Measured after first print in Fast Q5 mode, using plain paper

Up to 244 D Prints/Hour
*Measured after first print in Fast Q5 mode, using plain paper
Z36 Scanner
 Scanner Type
Contact Image Sensor (CIS) technology

Scan Accuracy
+/- 0.1%

Speed
13 ips monochrome, 6 ips color

Optical Resolutions
1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. 9600dpi interpolated

Max. Document Size
Width: 38 inch document width (36 inch image width)
Length 315” (JPG or PDF)
598” (TIFF)

Thickness
0.04in (1mm)

Standard Interface
USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
Print Resolution Up to 2400 x 1200 dpi
Media Media Width
Cut Sheet - 8” - 36”
Roll Feed - 8” - 36”

Maximum Roll Print Length
Roll Feed - 59 (18 meters)

Maximum Media Roll Diameter
6.9” (175m)

Borderless Printing Width
All sizes

Paper Feed Method
Roll Feed: Two Roll, Front-loading
Cut Sheet: Front-loading
Print Technology

Technology: 5-color inkjet

Print Language: SGRaster, HP-GL/2, HP RTL, PDF, JPEG

Line Accuracy: ±0.1% or Less

Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each

Droplet Size: 5 Picoliter

Nozzle Pitch: 1200 dpi Non-firing nozzle detection and compensation

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK

Ink Tank
Shipped with Printer: 330ml MBK; 160ml BK,C,Y,M
Replacement: PFI-340 (330 ml), PFI-740 (700 ml)

Ink Tank Capacity
Starter: 160ml
Replacement: 330ml or 700ml per color
System Printer RAM: 128 GB (Virtual), 2 GB (Physical)

Hard Drive: 500 GB
Connectivity USB B Port
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer
Connector Type: Series B (4 Pins)
USB A Port: USB Memory (Direct Print)

Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation
IEEE 802.3ab 1000Base-T/Auto-Negotiation
IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b
Security: WEP (64/128-bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Dimensions / Weight TZ-30000: 55” x 67” x 37”; 635 lb. (Approx.)
Z36 Scanner: 45” x 17” x 15”; 46 lb. (Approx.)
O.S. Compatibility Windows® 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows Server 2008 R2, (32/64 bit), Windows Server 2012 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit), Macintosh® OS 10.12.6 and later
Power Supply & Consumption Power Supply
AC 100 - 240 V (50 - 60 Hz)

Power Consumption
Maximum: 68 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less
What's Included
  • Canon imagePROGRAF TZ-30000 MFP with Z36 Scanner
  • Starter inks (330ml MBK; 160ml BK,C,Y,M)
Accessories
Accessories 2"/3" Roll Holder Set (RH2-34)
PosterArtist
Supplies Ink Tank (PFI-340/PFI-740)
Print Head (PF-06)
Maintenance Cartridge (MC-30)
