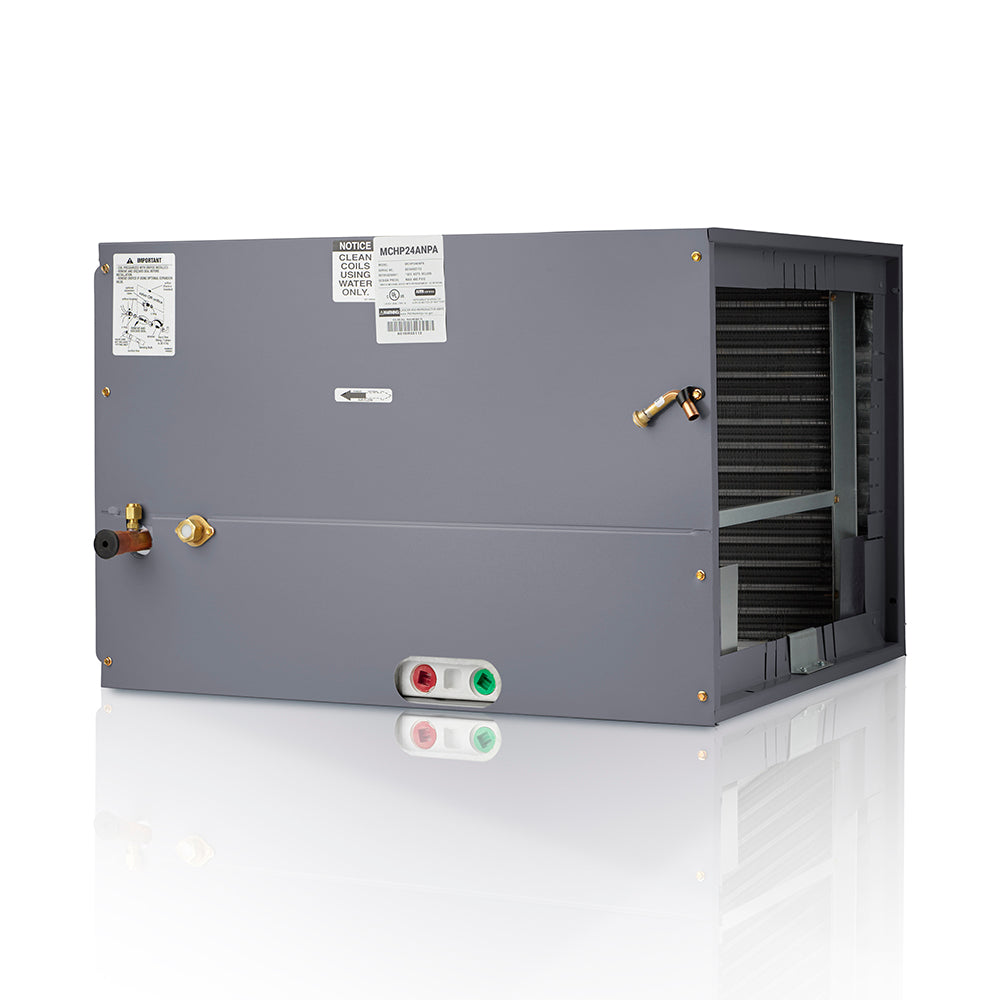

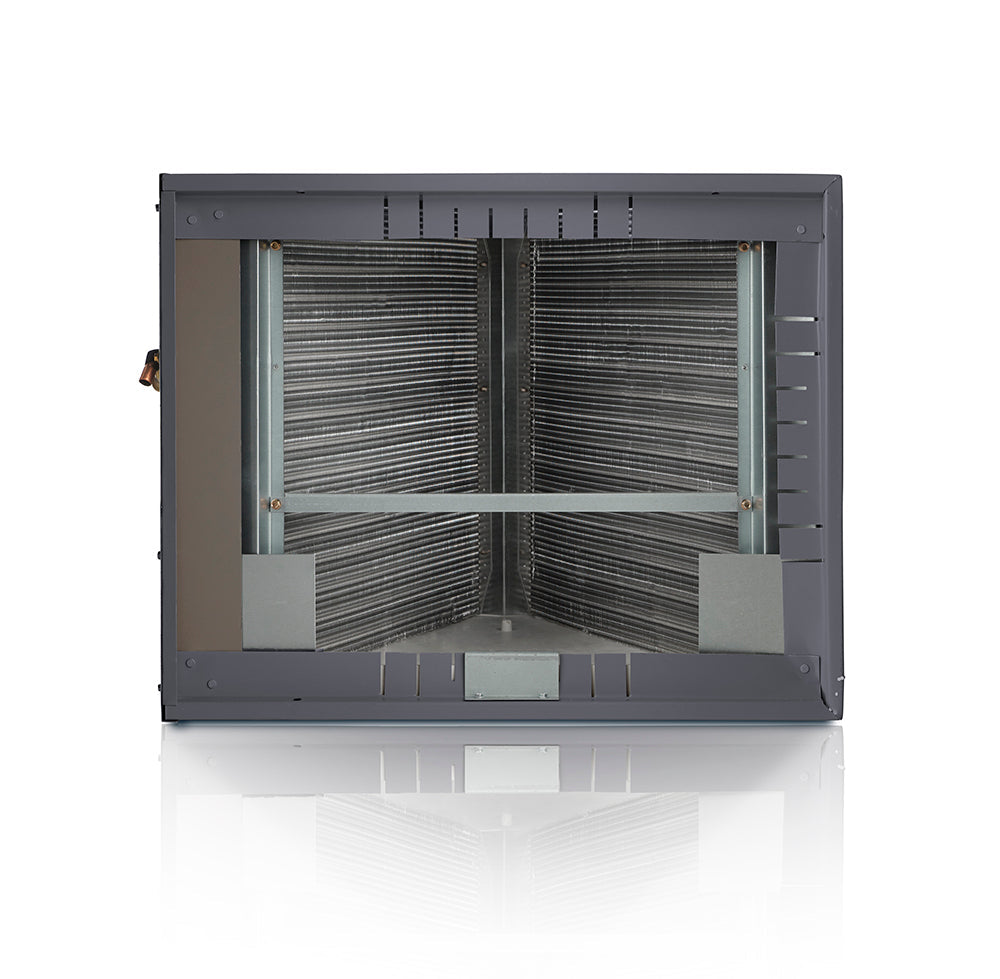

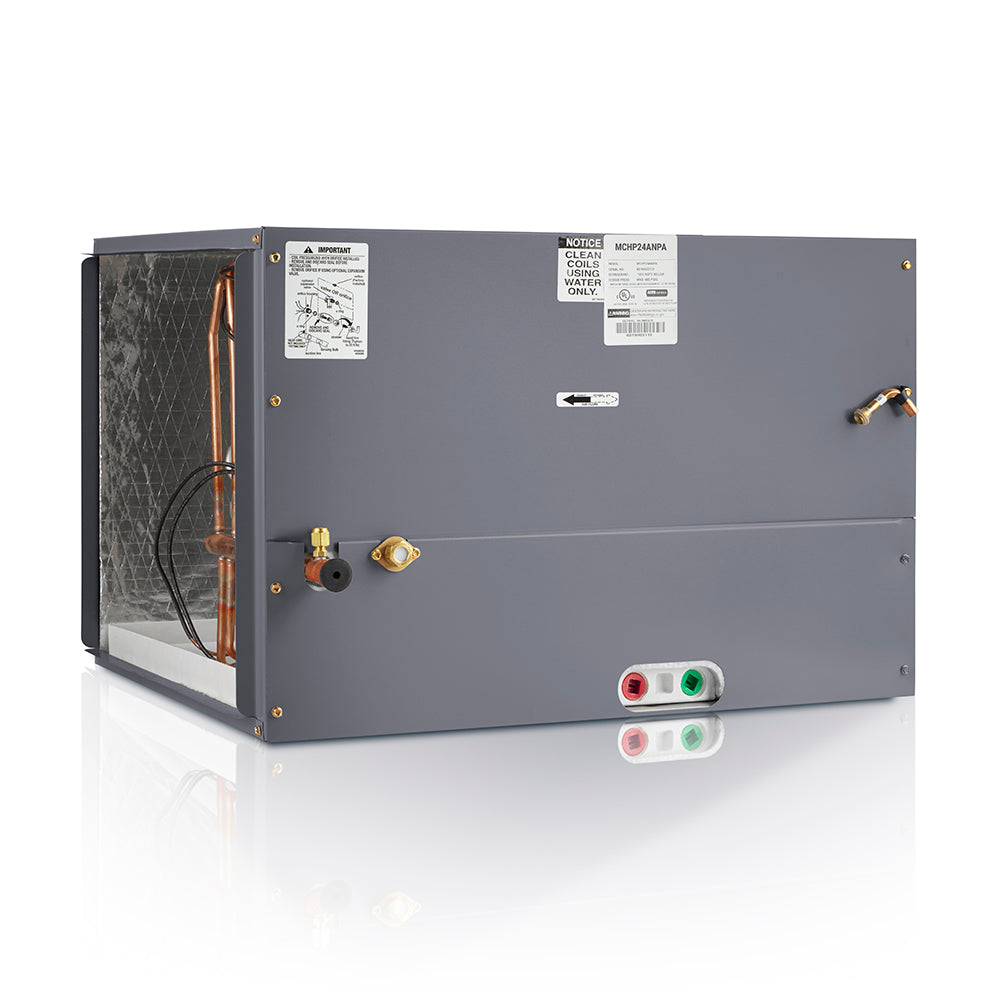

MRCOOL 2.5 Ton BTU R410A Horizontal Cased Evaporator Coil - 14.5", MCHP30ANPA

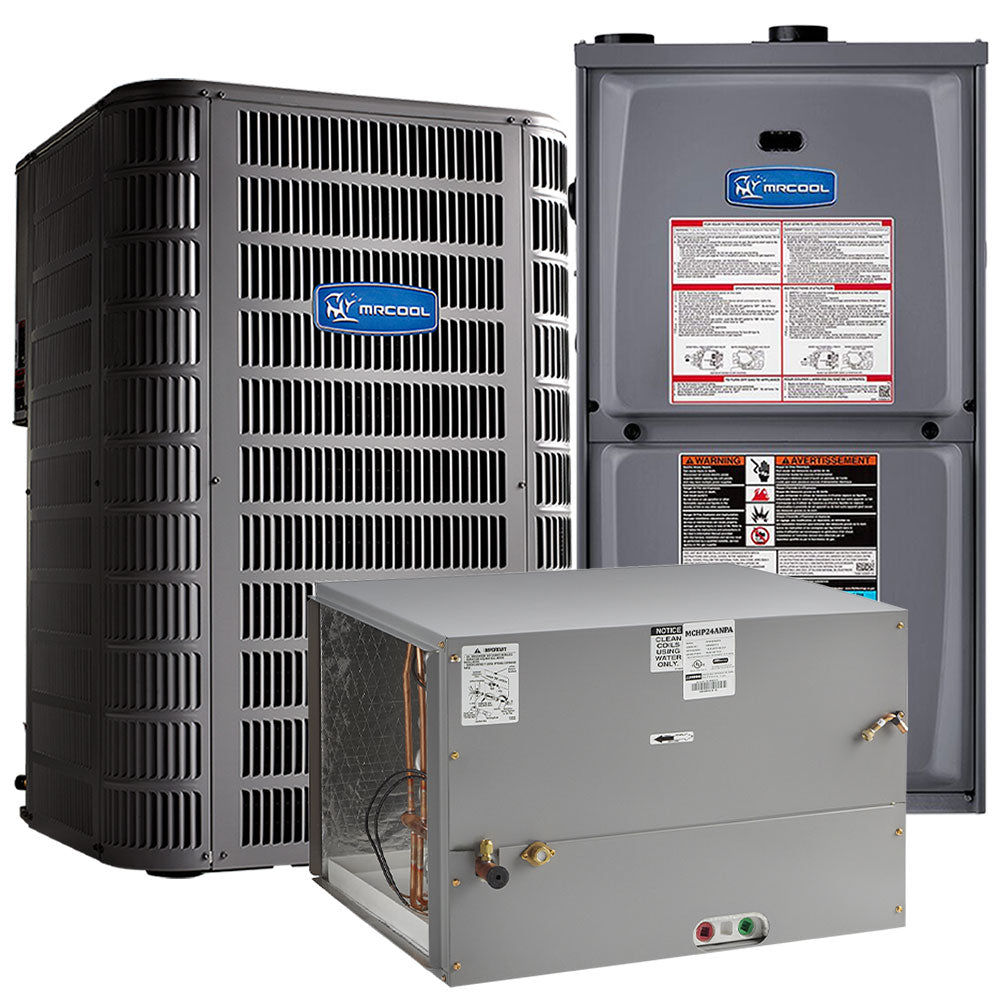

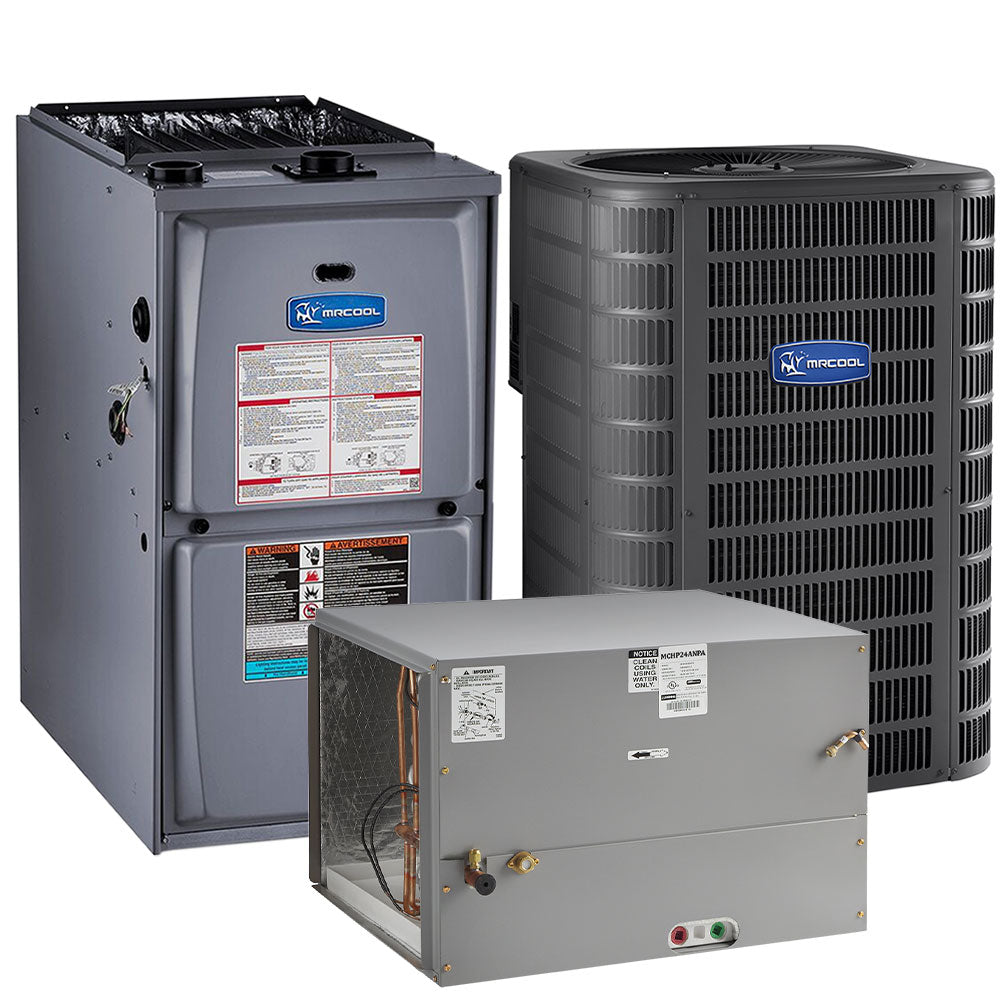

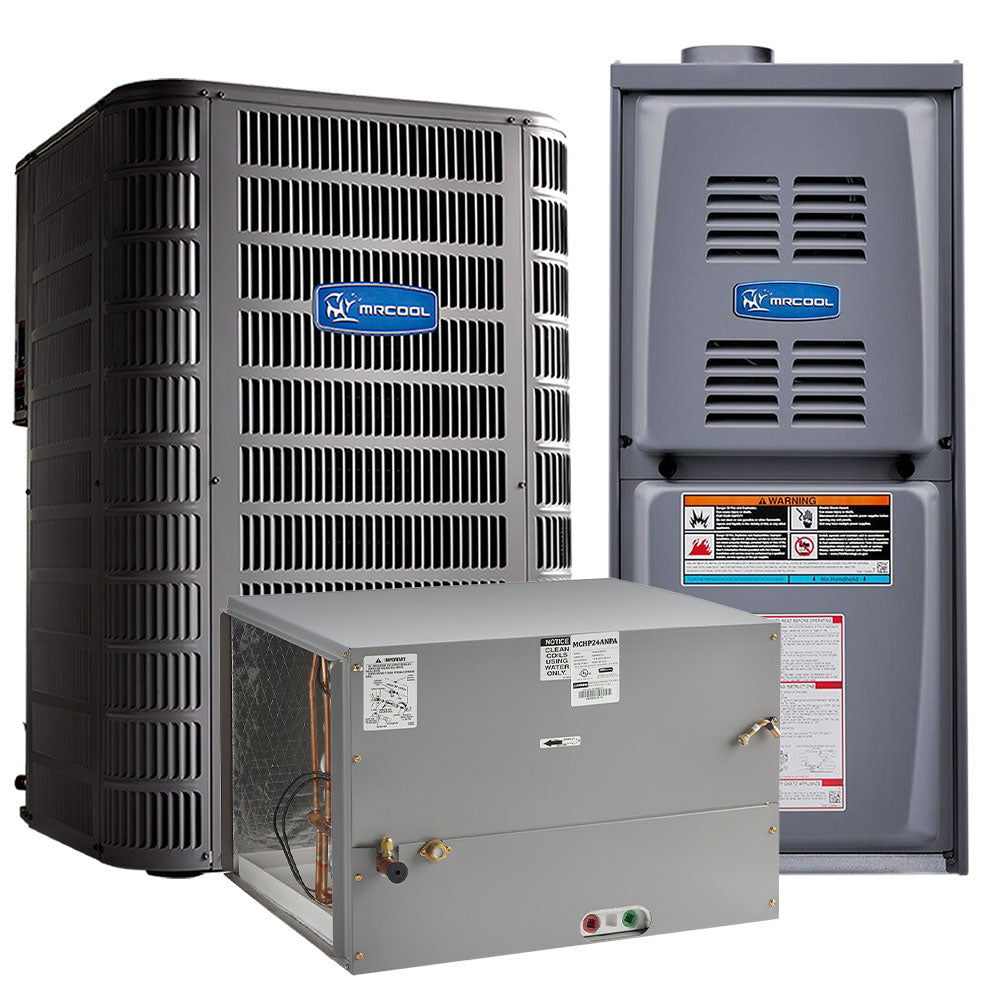

The MRCOOL 2.5 Ton BTU R410A Horizontal Cased Evaporator Coil - 14.5", MCHP30ANPA is the perfect choice for enhancing your heating and cooling systems. Designed to efficiently work with heat pumps and air conditioners, this evaporator coil promises fast and flexible application, making it ideal for a variety of settings. When paired with a compatible MRCOOL Signature Series condenser and gas furnace or modular blower, this coil can achieve impressive efficiency ratings of up to 16 SEER.

Key Features

• Interlocking door assemblies and snug line seal grommets to reduce air leakage.
• UL Listed and AHRI Certified for safety and reliability.
• Industry-leading low water retention drain pans to minimize mold and mildew growth.
• Durable insulated galvanized steel case with an attractive embossed finish.
• Foil-face insulation for hassle-free cleaning and maintenance.
• Compatible with UV lights for enhanced cleanliness.
• Removable top panels provide easy access for servicing or cleaning.
• Superior service access, with tubing conveniently located at the door split.

Specifications

Product Dimensions: 21.5"W x 26.5"D x 14 1/2"H
Product Weight: 55 lbs
Tonnage: 2 1/2
Cooling Capacity: 30,000 BTU
Color: Gray
Refrigerant Type: R-410A
Drain Connection Size: 3/4
Lineset Length Options: 15ft, 25ft, 35ft, 50ft
Max Lineset Length: 50 ft
Lineset Fitting Type: Sweat
Liquid Line Size: 3/8
Suction Line Size: 3/4
Certifications: UL, AHRI
Warranty: 10-Year Parts Limited Warranty

With aluminum tubing, hairpins, distributors, and header tubes, along with copper refrigerant connections, the MRCOOL 2.5 Ton BTU R410A Horizontal Cased Evaporator Coil ensures easy brazing to both liquid and suction lines. The tubing is conveniently located at the door split for easier service and cleaning, making this product a smart choice for any HVAC system.
